NDS 836 - 8" Pedestrian Pro Series Channel Grate, Light Gray
$65.02
Sale price
$65.02
Regular price
$85.55

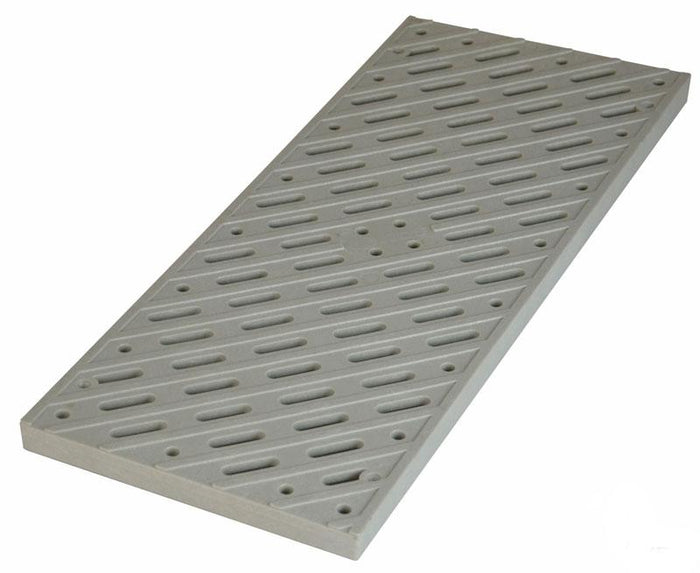

NDS #836, 8" x 20" Pro Series Pedestrian Channel Grate
Light Gray - UV protected high impact Polyolefin pedestrian traffic channel grate.
Open surface area 11.70 square inches per foot. 15.33 GPM per foot.
Fits: #830 or #833 8" Channel Drains
Requires #829 screws. 4 screws per grate.
Class A Rating: Loads of 1-60 psi. Recommended for pedestrians, bicycles and wheel chair traffic.
Catalog & Brochures
Drainage Catalog
PDF
Videos
S5 Intro
Watch Video
S5 Sustainable stormwater Solutions
Watch Video
How do I install an NDS Pro Series channel drain?
Watch Video
S5 Capture
Watch Video
S5 Overview
Watch Video
Case Studies
Technical Information
Specifications Sheets: 8" Pro Series Channel Drain Grate 836
PDF
CAD Details: 8" Pro Series Installation Detail, Pedestrian Traffic Installation Rebar Tie Down 4" Concrete Abutment
PDF DWG
